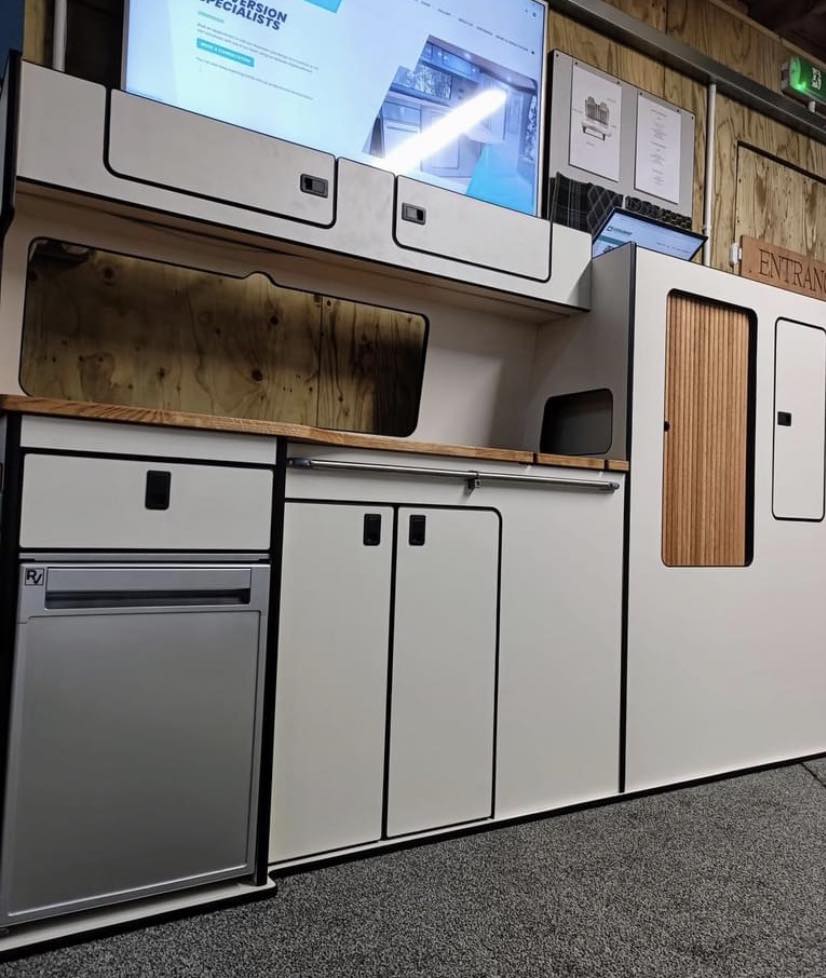

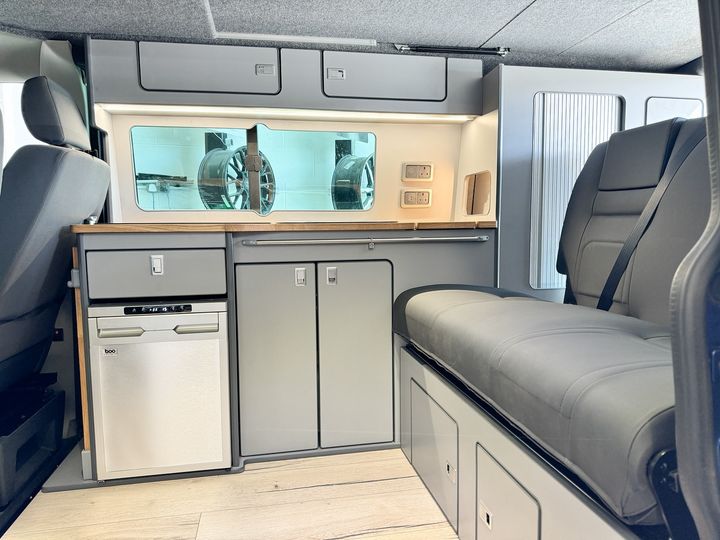

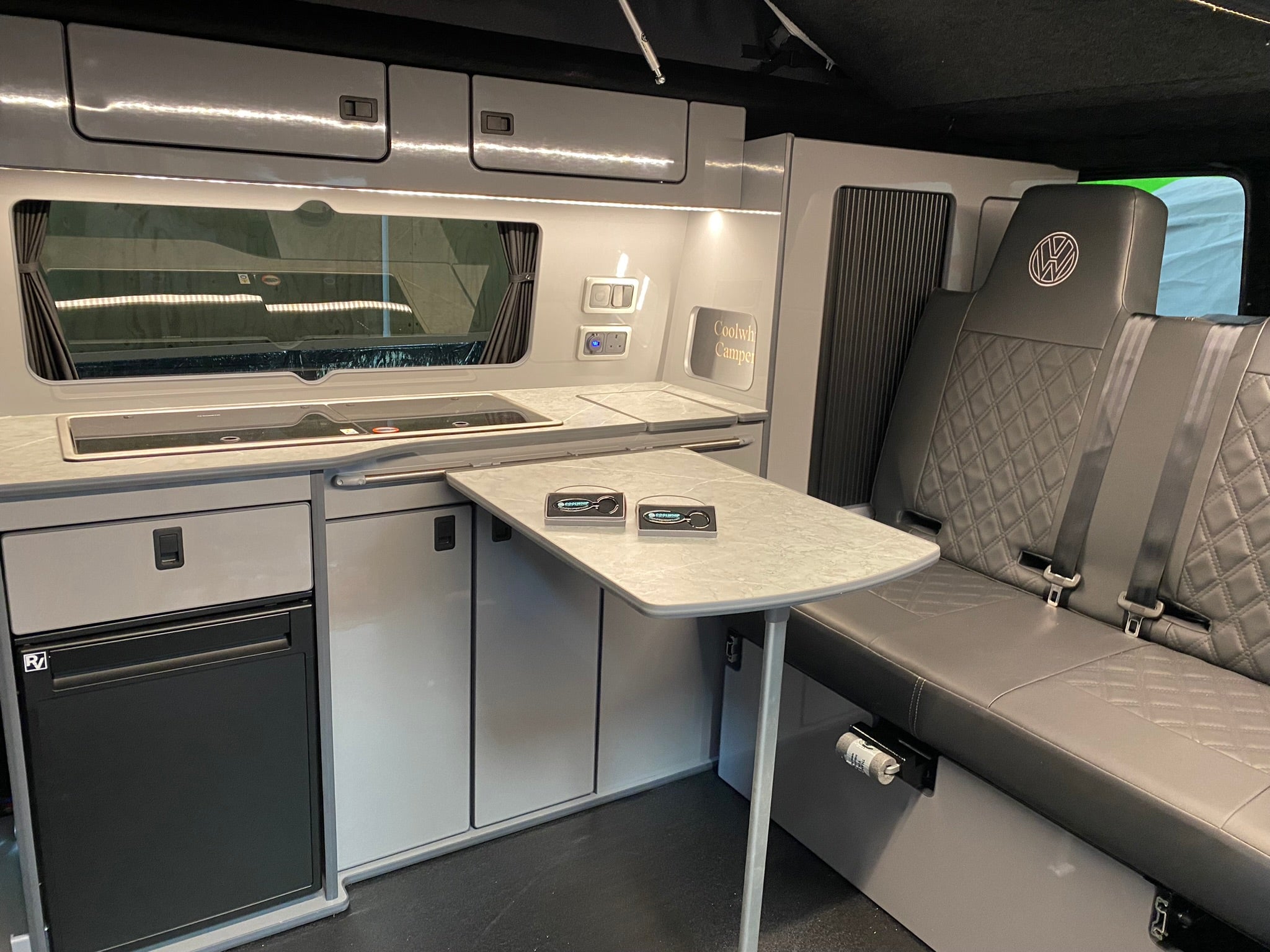

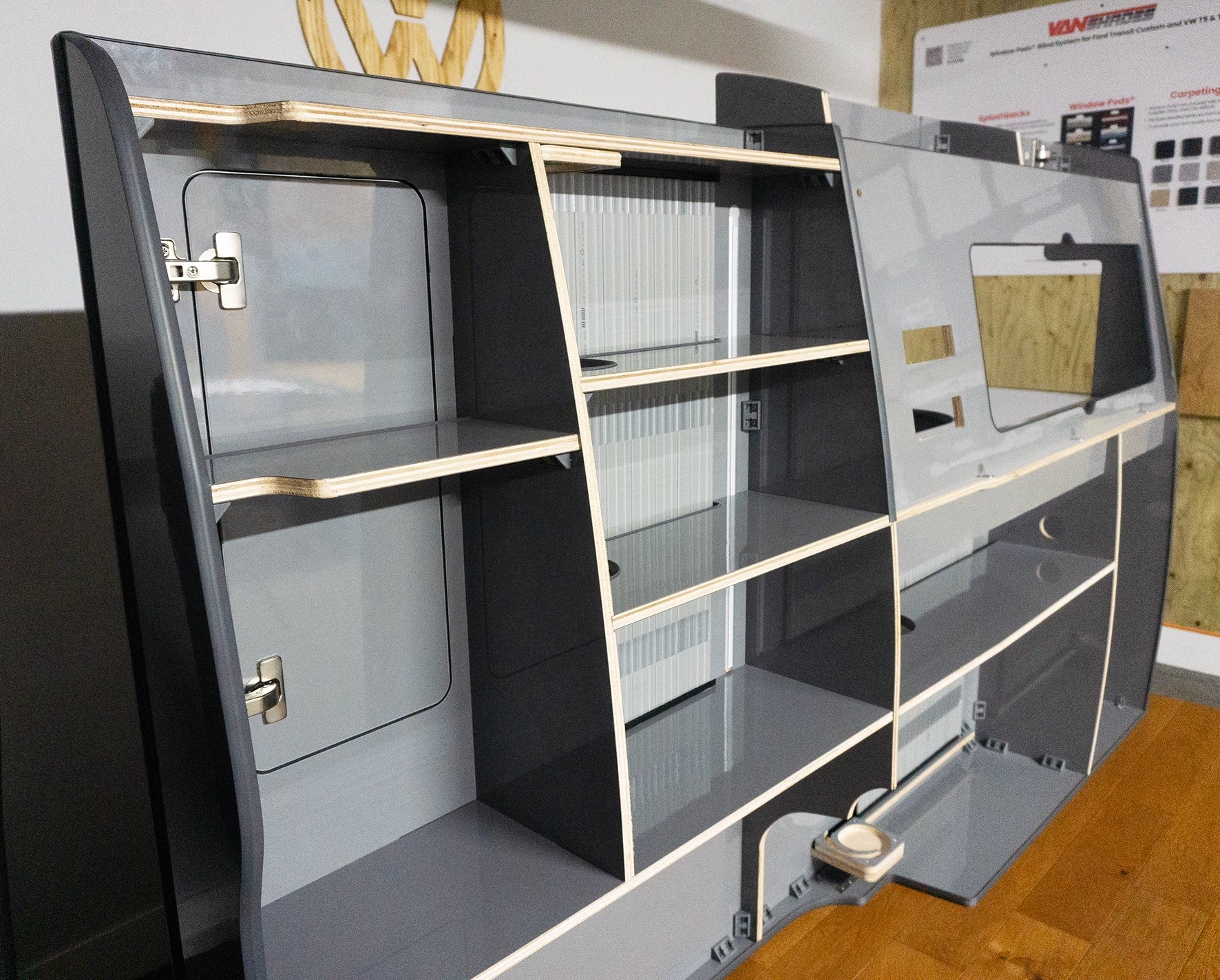

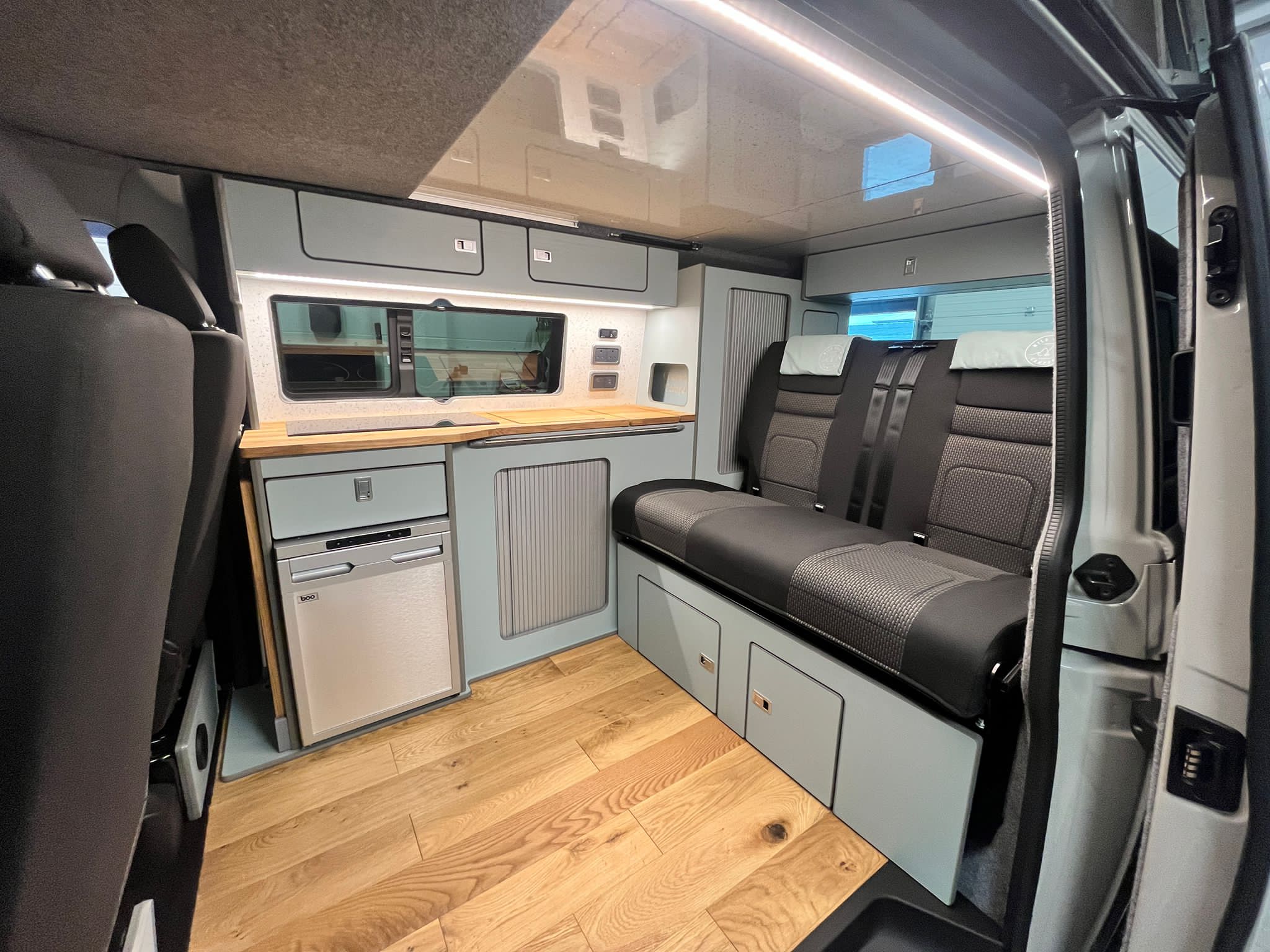

This VW T5/6 kit has been designed and pre-scribed to fit perfectly flush, straight into your camper van, minimising work and saving a huge amount of time.

With our clever integrated floor system, you can build your units in the comfort of a workshop or garage, click them into the rebated floor base, prewire and install any appliances, then with one lift the units can be fitted to the van. The beauty of our concept has changed the small van conversion concept all together, allowing you to remove the units if necessary

Spec

• High pressure laminate boards
• Integrated floor system for simple installation
• Soft close drawer
• Soft close door hinges
• Large tambour door
• Overhead LED top locker
• Full size window surround splashback
• Full  LED shelving system throughout
• Kickboards for Rock ‘N’ Roll Bed
• Table with folding leg & rail
• Table storage system
• LED cubby hole
• Worktop storage flap
• Evomatic catches
• Grill/sink cut outs
• Personalised coasters
• Easy to follow picture instructions

SWB
Overall length: 2180mm | Height 1340mm

LWB
Overall length 2580mm | Height 1340mm

Work top
Height: 760mm

Fridge Aperture
Width: 390mm | Height 536mm
Will accommodate most popular campervan 12v fridges

Rock & Roll bed
Suitable for beds 112cm or smaller

Van floor

Must have an overall thickness no greater than 16mm from the ribs

Ply-Lining

Must have Two-piece ply-ling on O/S with full height rear quarter
